Baja Designs Squadron Pro Auxiliary LED Light Pair

FREE Shipping!
In stock

Get the Light of a Light Bar in a Smaller Package

  • Squadron Pro LED Light Pair
  • Lumens: 4,900 Utilizing 4 Cree LEDs
  • Wattage/Amps: 40W / 3.33A
  • Brackets,Hardware & Harness Included!
  • Hard Coated Polycarbonate Lenses
  • Exceeds Military Testing
  • Stainless Steel Hardware & Brackets
  • Aircraft Grade Aluminum Housing

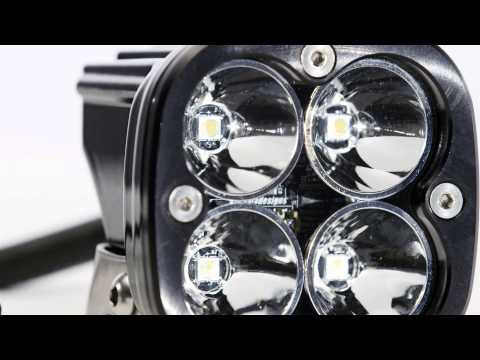

Baja Designs Squadron Pro Auxiliary LED Light Pair
Baja Designs Squadron Pro Auxiliary LED Light Pair

This Baja Designs Squadron Pro LED lights pack an incredible 4,900 Lumens at only a 40 watt draw that will truly annihilate the night. Don't let these lights fool you, although small and compact in size, this LED light will literally blind you with brightness. These Squadron Pro lights come equipped with a sleek black gloss aluminum housing and outshines the competition through both appearance and performance.


  • Lumens: 4,900 Utilizing 4 Cree LEDs
  • Wattage/Amps: 40W / 3.33A
  • Weight: 12 ounces
  • Dimensions: 3.07" x 2.77" x 3.07"
  • LED Life Expectancy: 49,930 Hours
  • Front Lens: Hard Coated Polycarbonate
  • Housing: Hard Anodized & Powder Coated Cast Aluminum
  • Bezel: Billet Machined Aluminum
  • Hardware & Bracket Material: Stainless Steel


  • (2) Squadron Pro LED Lights
  • Mounting Brackets & Hardware
  • Wiring Harness

Beam Patterns:

  • Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42^0) and spot (9^0) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
  • Spot: A longer and narrower 9^0 beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)
  • Work/Scene: Excellent work light or "scene light" with an extremely smooth 120^0 circle that projects about 40ft. This pattern is not suitable for driving. (Lighting Zone 7)
  • Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42^0 flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2)

  • This Listing Includes Part Number's: 497801, 497803, 497805, 497806, 497811, 497813, 497815, 497816
