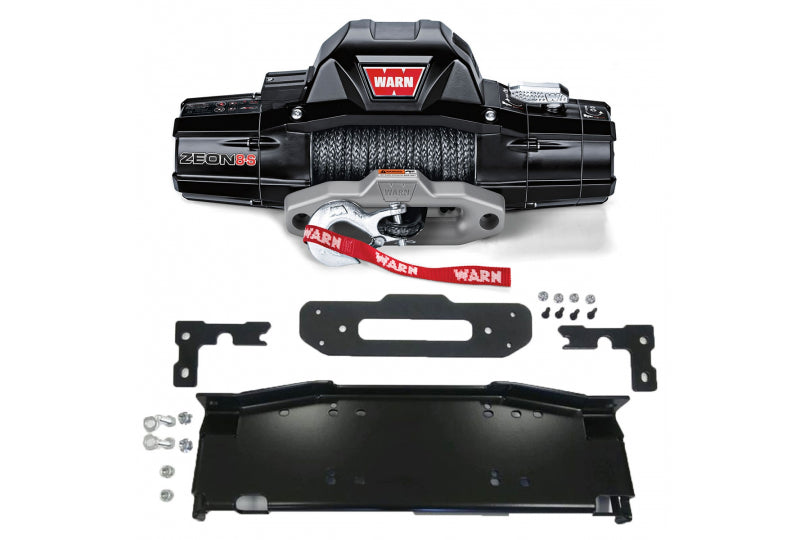

| This all-inclusive winch mount kit includes everything you need to put the Warn Zeon Series winch in the "winch-ready" factory steel bumper found on many Rubicons and specialty trim packages for the Wrangler JL & Gladiator JT. Whether you have a Rubicon, 4xe, or a Mojave Gladiator with the Steel Bumper Group, this winch mount kit takes the guesswork out of choosing the right part for your steel bumper. The kit includes the Warn Zeon winch of your choice and the Maximus-3 frame-mounted winch mount giving you everything you need to go from no winch to ready to recover on the trail adeptly. We offer additional (but optional) parts that may help you complete your front bumper winch setup. The winch hook anchor provides a convenient place to store your hook so it is not against the bumper, the filler trim plates fill the gaps between the frame and bumper after the installation (the factory plastic trim piece is removed during the install), the d-ring loops attach to the bottom of the winch mount allowing for more flexibility when recovering, and the license plate mounts cleanly allow for the install of a license plate for those required to have one by their state. Maximus-3 Winch Mount Details & Specifications
This all-inclusive winch mount includes everything you need to install a winch in the "winch-ready" factory steel bumper found on many Rubicons and specialty trim packages for the Wrangler JL & Gladiator JT. Whether you have a Rubicon, 4xe, or a Mojave Gladiator with the Steel Bumper Group, this winch mount takes the guesswork out of choosing the right part for your steel bumper. This inboard chassis-secured winch mount is built to the Warn specification of 1/4" thick one-piece heavy gauge steel in a laser-cut, press brake, and welding process. Cleverly engineered to provide a structurally sound mount for your winch, this is the most tried and true winch mount on the market and has been trusted by RubiTrux for years on both our customer builds well as our own. This winch mount kit for the Wrangler JL & Gladiator JT Steel Bumper Group factory steel bumper includes everything needed to install about every winch available on the market, including the Warn Zeon, Warn VR, Smittybilt X20, Smittybilt XRC GEN3, Superwinch SX, as well as many other small body winches; the Warn CTI & PowerPlant are not a direct fit.
Maximus-3 Winch Mount Specifications:
- Designed Specifically for Wrangler JL & Gladiator JT Factory Steel Bumper Group Front Bumpers
- Made from One-Piece Heavy Gauge Bent Steel Plate with a Laser Cut, Press Break, and Welding Process
- Designed to Fit Warn Zeon, Warn VR, Smittybilt X20, Smittybilt XRC GEN3, Superwinch SX, as well as other Small Body Winches
- Mounts Directly to the JL & JT Chassis Frame
- Durable Satin Black Powder Coat
- Winch Plate Kit Weight - 24 lbs.
- 12,000 lb. Load Rating
- Made in The United States
Warn Zeon Series Winch Details & Specifications
The Warn Zeon is the go-to for trail recovery, climbing assistance, and removing obstacles for off-roaders who demand the best and expect reliability when they need it most. With aggressive styling, clean lines, and fast line speed, the Warn Zeon winch sets the standard for heavy-duty, high-performance recovery for Jeep Wrangler & Gladiator owners who need the best in winching performance. Built with an incredibly smooth planetary gear design and a heat-dissipating brake, the Warn Zeon is the benchmark for state-of-the-art winches in the premium winch category — featuring corrosion inhibiting double powder coating, stainless steel fasteners, and top of the line moisture sealing. The Warn Zeon sets the standard to which all other winch brands and series look to compare — designed, tested, and assembled by Warn engineers and servicers in the U.S.A.

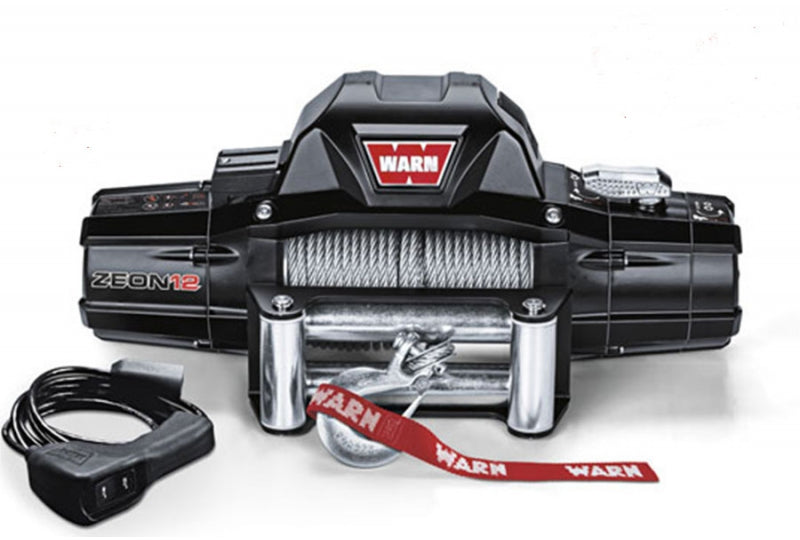

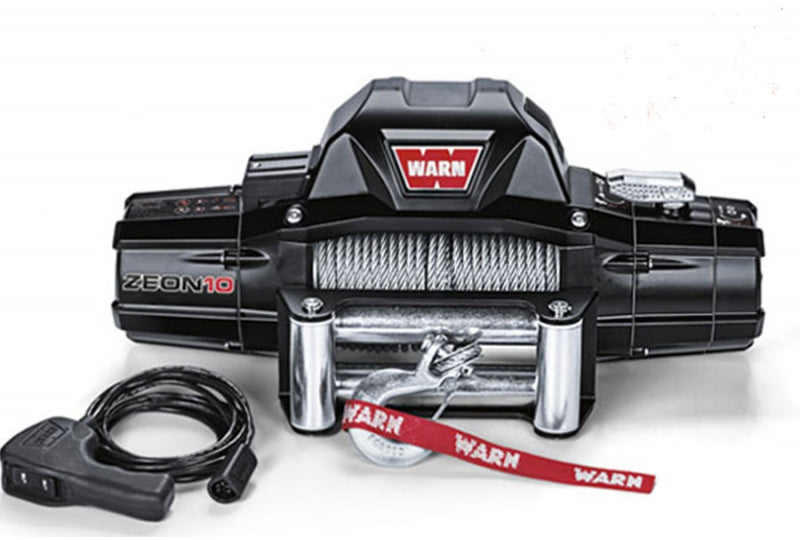

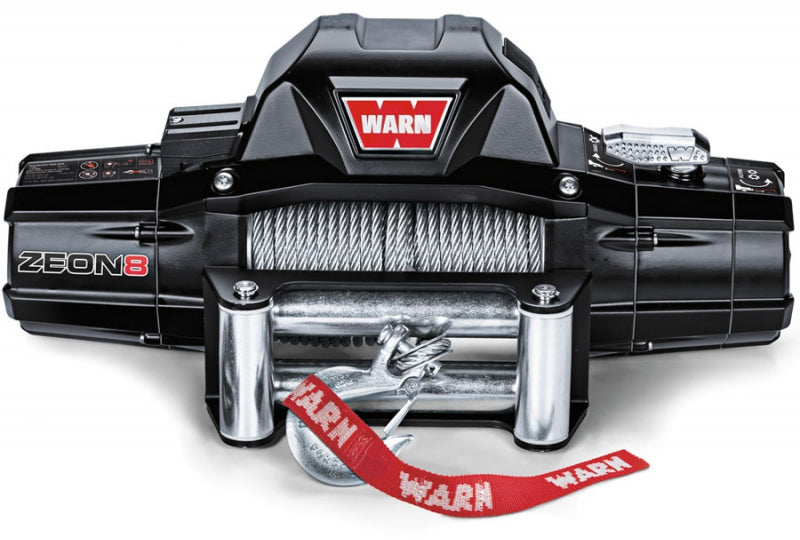

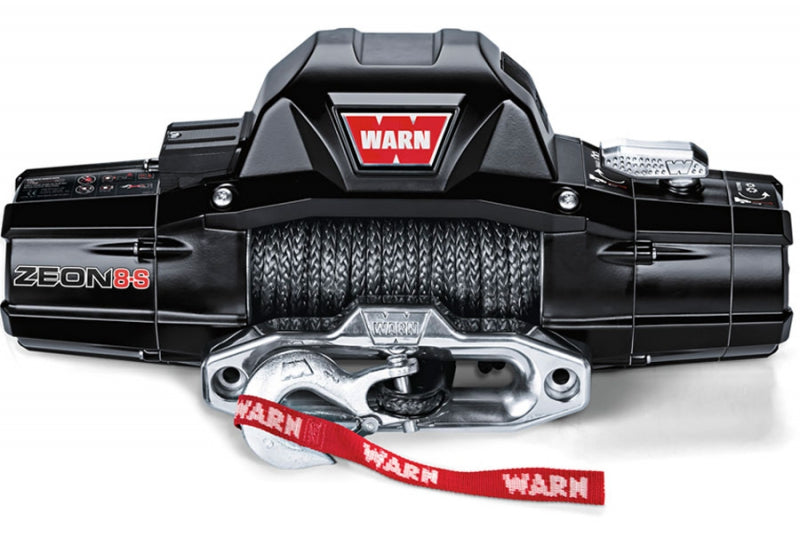

Warn Zeon Overview (Non-Platinum):
- Convertible control pack can be attached to the winch or remotely mounted, allowing for various winch mounting options & looks.
- New design planetary gear train & series wound motor deliver fast, quiet & reliable pulling power.
- Satin black powder coated finish with stainless steel fasteners & clutch lever looks great & inhibits corrosion.
- Improved winch sealing to keep the elements out.
- Large diameter winch drum reduces rope wear, is lightweight & has an integrated rope anchor for easy rope installation.
- Limited lifetime warranty for mechanical components. Limited 7 year warranty for electrical components.

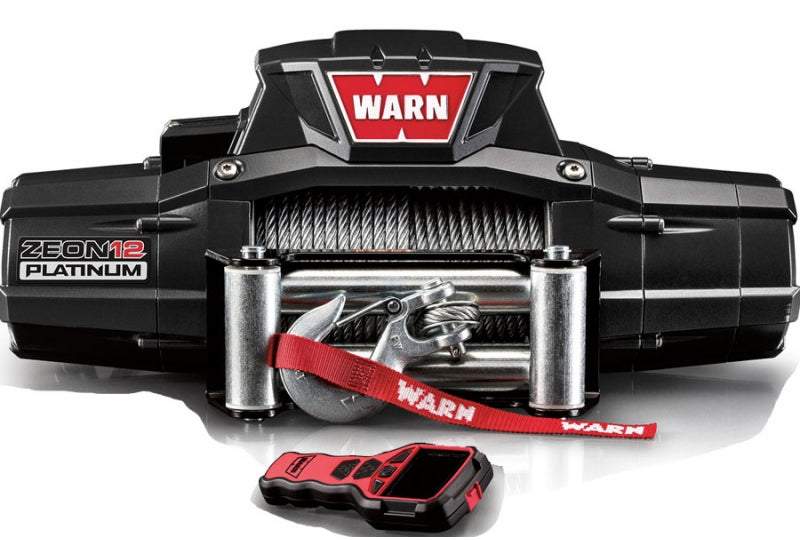

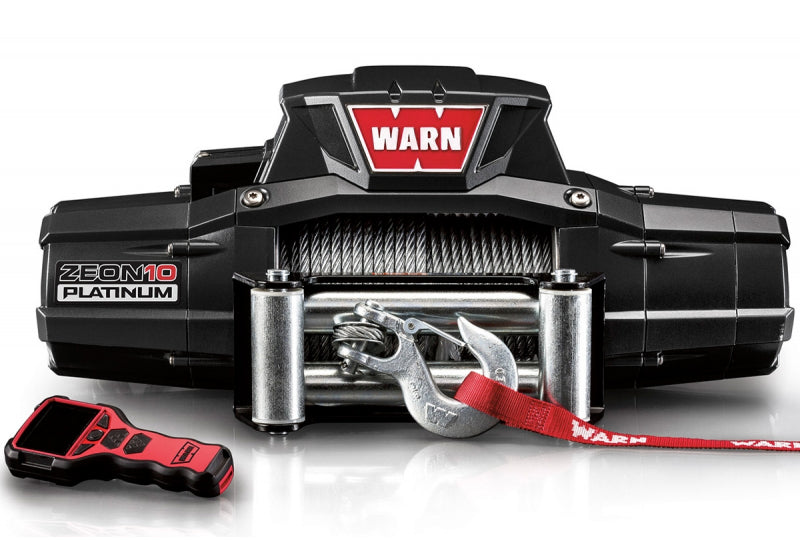

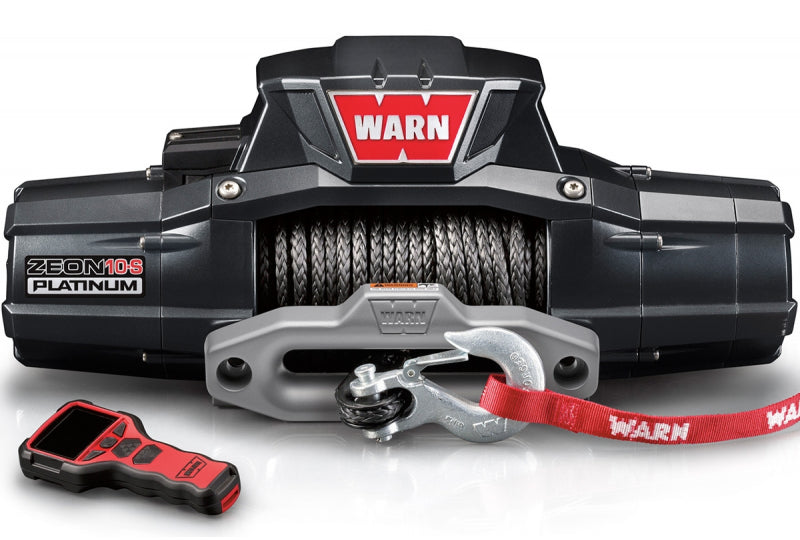

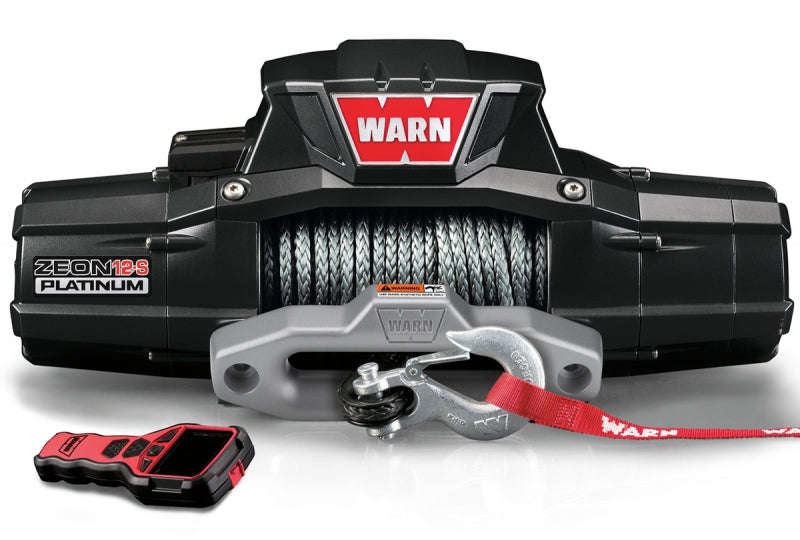

Warn Zeon Platinum Overview:
- Remote Controlled Clutch is engaged and disengaged with the Advanced Wireless Remote. The remote controls winch-in, winch-out, and freespool operations. The manual clutch has been eliminated. No more re-engaging a manual clutch, with frozen fingers while standing in the mud.
- The Advanced Wireless Remote gives you total control in the palm of your hand, allowing you to control the winch and up to two accessories. This sophisticated, advanced remote provides operator feedback on vehicle battery charge and winch motor temperature, controls operation of the winch clutch, and more. Includes USB charging cable and car charger adapter.
- All-new high-speed motor, stronger gears, and heat-treated ring gear deliver 20% faster line speed, best-in-class efficiency, and our highest durability rating.
- Durable aluminum structure with flat black powder-coated finish and stainless steel fasteners delivers durability and maximum corrosion resistance-exceeding 400 hours of salt-spray testing.
- Large diameter alloy winch drum with steel sleeve is strong, light weight, reduces rope wear, and has an integrated rope anchor for easy rope installation.
- Extreme waterproofing meets rigorous IP68 standards--the highest rating in the WARN Truck/SUV winch lineup.
- Automatic mechanical cone brake offers excellent control while winching.
- Convertible control pack can be attached to the winch or remotely mounted, allowing for various winch mounting options and looks (Relocation kit required and sold separately). The new-style control pack with contactor and advanced controls gives you extreme reliability and weather resistance.
- Limited Lifetime Warranty for Mechanical Components. Limited Seven (7) year warranty for Electrical Components.
- Electrical Control Type - Contactors
- Motor Type - Series Wound
- Drive Gear Type - Planetary
- Gear Reduction Ratio - 162:1
- Brake Type - Mechanical Cone
- Line Diameter - 5/16 Inch
- Length - 100 Feet
- Line Material - Steel
- Fairlead Type - Roller
- Remote Type - Handheld Remote Switch
- Mounting Pattern Length - 10 Inch
- Mounting Pattern Width - 4-1/2 Inch
- Max Line Pull - 8,000 lbs.
- Max Line Speed - 6.2 ft. per Minute at 8,000 lbs.
- Max Amp Draw - 413 Amps at 8,000 lbs.
- Electrical Control Type - Contactors
- Motor Type - Series Wound
- Drive Gear Type - Planetary
- Gear Reduction Ratio - 162:1
- Brake Type - Mechanical Cone
- Line Diameter - 3/8 Inch
- Length - 100 Feet
- Line Material - Synthetic
- Fairlead Type - Hawse
- Remote Type - Handheld Remote Switch
- Mounting Pattern Length - 10 Inch
- Mounting Pattern Width - 4-1/2 Inch
- Max Line Pull - 8,000 lbs.
- Max Line Speed - 6.2 ft. per Minute at 8,000 lbs.
- Max Amp Draw - 413 Amps at 8,000 lbs.
- Type: Electric
- Mount Type: Vehicle Mounted
- Recommended Use: Vehicle Recovery
- Voltage: 12 Volt
- Electrical Control Type: Contactors
- Motor Type: Series Wound
- Thermal Shutoff: No
- Drive Gear Type: Planetary
- Gear Reduction Ratio: 216:1
- Free Spooling: Yes
- Brake Type: Mechanical Cone
- Line Diameter (IN): 3/8 Inch
- Line Length (FT): 80 Feet
- Line Material: Synthetic Rope
- Fairlead Type: Hawse
- Conforms To J706 Standards: No
- Remote Type: Wired
- Mounting Hole Quantity: 4
- Operation Type: Automatic
- Mounting Pattern Length (IN): 10 Inch
- Mounting Pattern Width (IN): 4-1/2 Inch
- Includes Mounting Hardware: Yes
- Color: Black
- Drum Material: Aluminum
- Max Amp Draw/ Line Pull: 446 Amp Draw/ 10000/12000 Pound
- Max Line Pull/ Line Speed: 12000 Pound/ 4.5 Feet Per Minute
|
