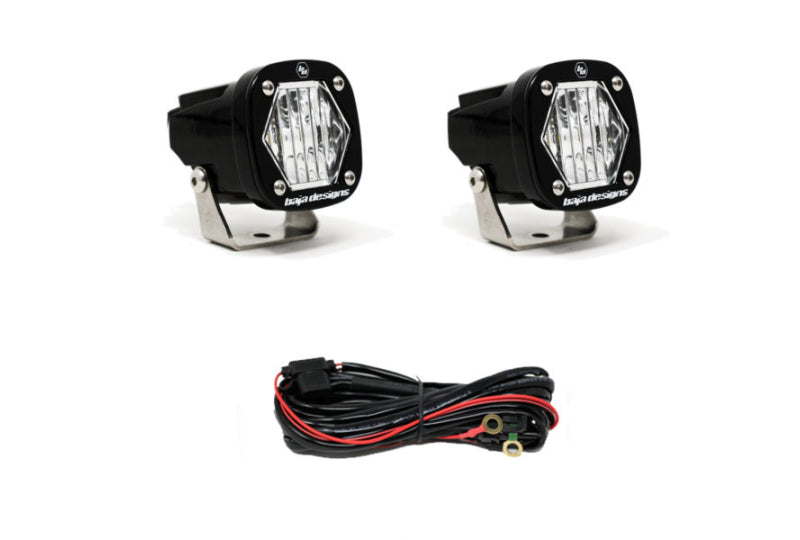

Designed from the ground up, the new S1 fills the shoes of a large light in a small package! The S1 utilizes a highly specialized reflector and LED combination to outshine the competition. Delivering unbeatable brilliance in a small package, the S1 has a trim body made from lightweight aluminum and a rugged polycarbonate lens, so regular bumps and bruises won’t lead to cracks or breaks.

Characteristics:

  • Limited Lifetime Warranty
  • uService® – Replaceable Lenses And Optics
  • ClearView® – All The Light, Right Where You Need It.
  • MoistureBlock™ – Waterproof, Rain Proof, Submersible
  • CopperDrive® – Only LED Driven At 100%
  • 5000K Daylight – Less Driver Fatigue, Natural Color
  • Forward Projecting Lumens: 2375
  • Forward Projecting Wattage/Amps: 20W / 1.45A
  • Dimensions: 2.1" Height / 2.1" Width / 2.1" Depth
  • Weight: 0.4lbs
  • LED Life Expectancy: 49,930 Hours
  • Front Lens: Hardcoated Polycarbonate
  • Housing: Hard Anodized Machined Aluminum
  • Bezel: Billet Machined Aluminum
  • Hardware & Bracket Material: Stainless Steel
  • Exceeds MIL-STD810G (Mil-Spec Testing)
  • Built-In Overvoltage Protection
  • IP69K (Waterproof up to 9ft & Pressure Washable)
  • IK10 Compliant (Mechanical Impact Testing)

Baja Designs Part Number: 297803

Pattern: Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Driving (42°) and the spot (6°) optics to provide you with a smooth blend of light for both near field applications and distance.
