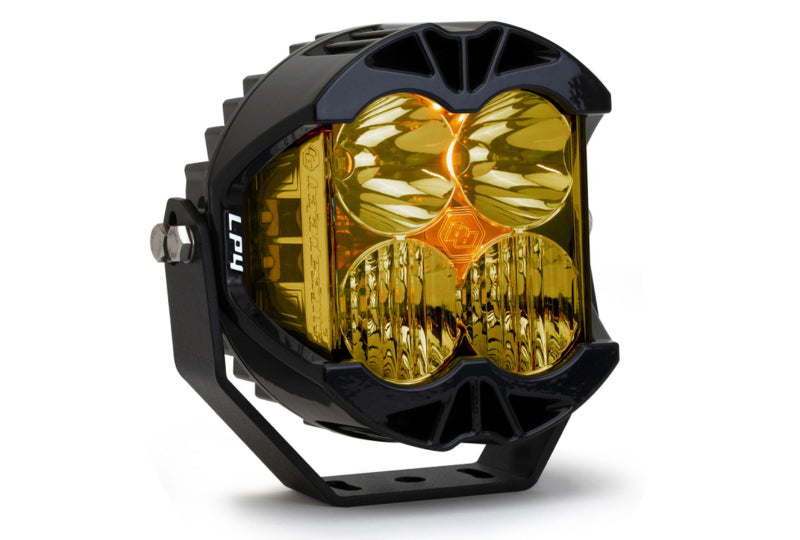

Baja Designs LP4 Pro, LED Light Driving/Combo - Amber, Single
Baja Designs LP4 Pro, LED Light Driving/Combo - Amber, Single
Add Amber Driving Light with Peripheral Visibility
- Single auxiliary pod with amber lens
- Driving/Combo beam pattern
- LED forward projecting light
- IP69K water and IK10 impact compliant
The LP4 is the smallest variant in the LP lineup but maintains all of the power and features of its siblings. The LP4 features a total of 8,750 lumens and a 200 degree spread of useable LED light. This light pumps out 7,050 forward projecting lumens and 1,700 lumens of dedicated peripheral lighting courtesy of our patented Integrated Peripheral Technology (IPT). To keep your light performing at its highest potential, the LP4 integrates our proprietary Direct Ducted Cooling (DDC) technology. This feature allows air to travel through the front of the housing, over the rear heat sinks - drastically improving cooling capacity and performance. The addition of red, blue, or green backlight options alongside our original amber on the LP4 Pro gives enthusiasts the choice to customize their vehicle for shows, photo shoots or anywhere they want to bring attention.
Product Specifications
| Manufacturer Part Number | 290013 |
|---|---|
| Backlight Amperage Rating (A) | 0.350 |
| Light Quantity | 1 |
| Secondary Amperage Rating (A) | 1.000 |
| Secondary Wattage (W) | 15 |
| Weight (lbs.) | 2.800 |
| Depth (in.) | 3.200 |
| Secondary Light Quantity | 4 LEDs |
| Backlight Wattage (W) | 4.830 |
| Average Rated Life (hr.) | 49,930 |
| Height (in.) | 5.100 |
| Length (in.) | 5.100 |
| Amperage Rating (A) | 5.500 |
| Wattage (W) | 75.900 |
| Lens Color | Amber |
| Lighting Modes | Beam/Day-Time Running Backlighting |
| Housing Color | Black |
| Overvoltage Protection | Built-In |
| Beam Pattern | Driving/Combo |
| Description | Driving/Combo; Amber |
| Terminal Connector | DT06-4S Deutsch |
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Lighting Type | Forward Projecting |
| Lens Material | Hardcoated Polycarbonate |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Secondary Lighting Type | Integrated Peripheral Technology (IPT) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
| Lighting Technology | LED |
| Secondary Lighting Technology | LED |
| Product Type | LP4 Pro LED Light Pod |
| Terminal Type | Mating Connector |
| Wiring Harness Included | No |
| Bezel Material | Powder Coat Cast Aluminum |
| Housing Material | Powder Coat Cast Aluminum |
| Prop 65 Warning Label | Prop 65 WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. |
| Mounting Hardware Material | Stainless Steel |
| Mounting Hardware Included | Yes |
| GTIN | 00819314029405 |
| Package Dimensions | 12.000 x 10.000 x 8.000 IN |
| Package Weight | 5.000 lb gross |
| Warranty | Limited Lifetime |
