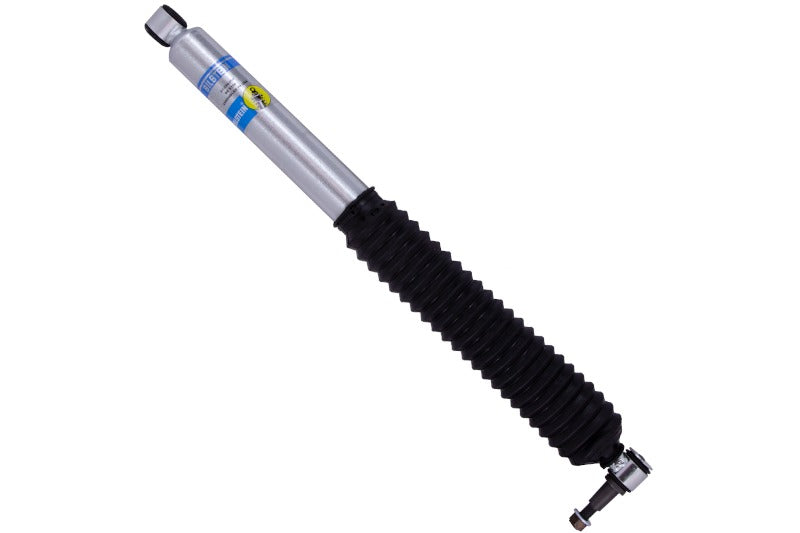

Bilstein 5100 Steering Stabilizer 2017-2024 Ford Superduty
Bilstein 5100 Steering Stabilizer 2017-2024 Ford Superduty
Regular price
$121.00
Sale price
$121.00
Regular price
Reduce Steering Vibration and Kickback with Monotube Damping
- Monotube design for precise damping
- Zinc plated finish resists the elements
- Reduces steering vibration and kickback
Bilstein B8 5100 (Steering Damper) is designed as an upgrade to factory steering dampers on trucks and SUVs. Utilizing our proven design, these steering dampers are able to dampen minute movements in the steering and reduce steering vibrations that naturally occur, especially in older vehicles. These steering dampers are zinc coated for resistance to harsh elements and match to all B8 5100 series products. B8 5100 (Steering Damper) will offer a significant improvement in steering, handling and comfort.
Product Specifications
| Manufacturer Part Number | 24-286558 |
|---|---|
| Collapsed Length (IN) | 16.93 |
| Upper Mount Type | Eye 12mm |
| Internal Design | Monotube |
| Lower Mount Type | Cantilever |
| Finish | Zinc Plated |
| Boot Included | Black Bellows |
| Position | Steering Damper |
| Extended Length (MM) | 673.0 |
| Extended Length (IN) | 26.50 |
| Body Design | 46mm ID Smooth Body (Non-Coilover) |
| Series | B8 5100 (Steering Damper) |
| Reservoir | No |
| Spring Seat Included | No |
| Segment | Light Truck |
| PartType | Steering Stabilizer |
| Prop 65 (Y/N) | Y |
| Collapsed Length (MM) | 430.0 |
| Shaft Diameter | 11mm |
| Stroke/Travel Length (mm) | 243.1 |
| Stroke/Travel Length (IN) | 9.57 |
| GTIN | 00651860862378 |
| UPC/Barcode | 651860862378 |
| Package Dimensions | 26.8000 x 4.1500 x 4.1500 IN |
| Package Weight | 5.5000 lb gross |
| Warranty | Lifetime |
| Warranty Document | warranty_all_v4.2.pdf |
