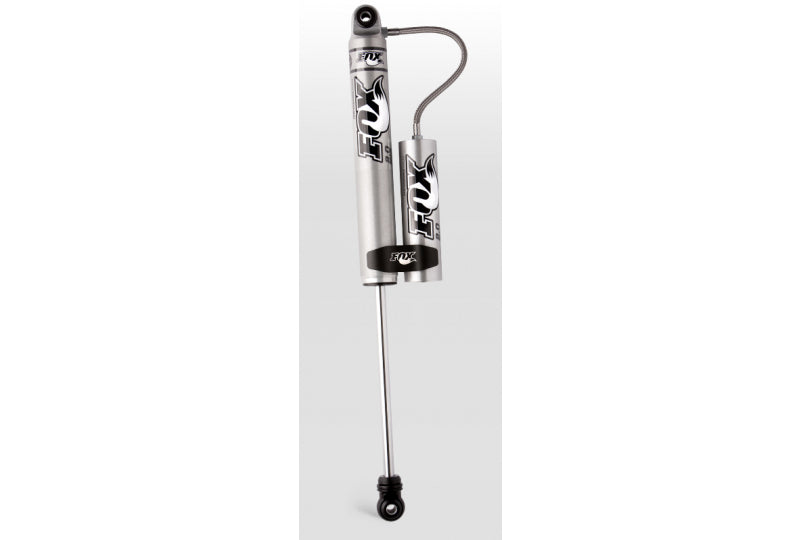

Fox Racing 2.0 Performance Series Reservoir Shock; Single, Rear, 1.5"-3.5" Lift

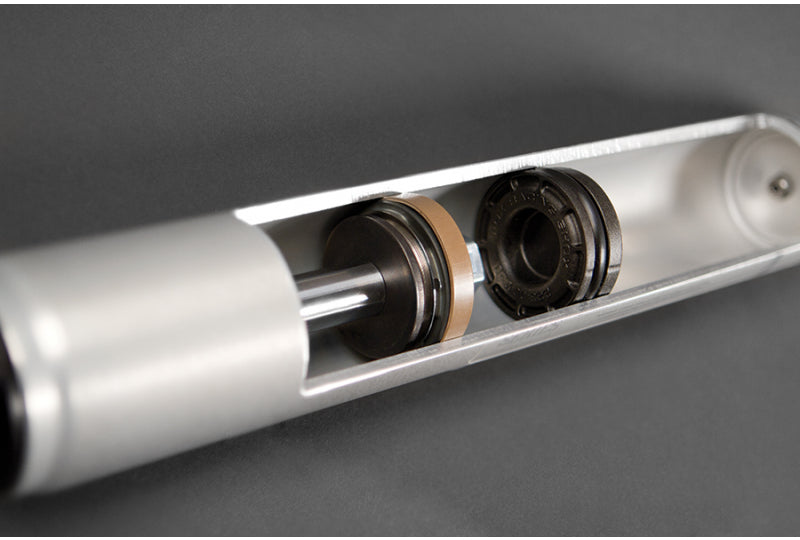

The aluminum bodied 2.0 Performance Series Reservoir smooth body shock delivers FOX's industry leading and race dominating performance in an affordable, hassle-free bolt on package. Its heat reducing design includes a metal impacted clear anodized aluminum shock body that dissipates heat faster than a conventional steel body shock. Its external reservoir allows for increase oil and nitrogen capacity while delivering striking race look. The included black anodized reservoir mounting clamp and other components are CNC machined from 6061-T6 aluminum. The race developed high flow damping piston matched with application specific valving provides the 2.0 Performance Series Reservoir shock a predicable ride quality capable of handling the roughest road conditions. Specifications Body 2.0" Metal impacted 6061-T6 aluminum will resist rust over time Body Plating Clear-anodized for a durable finish External Reservoir 2.0" Smooth Bore 6061-T6 billet aluminum Components Black-anodized, CNC-machined 6061-T6 billet aluminum Shaft 5/8" hard chrome plated heat-treated alloy steel Piston Race-developed high-flow piston design Valving Application specific valving to maximize performance Seals Redundant sealing pack system main seal, wiper seal, scraper seal Oil JM92 Advanced Suspension Fluid for improved performance at variable temperatures Bushings Quiet nitrile rubber allows for increased suspension articulation Mounting Direct replacement for stock and aftermarket lifts kits

Product Specifications

Manufacturer Part Number	985-24-016
Series	Performance
Top Mount (p/n)	213-82-003
Label Name	07-ON Jeep JK Rear, PS, 2.0, R/R, 9.6", 1.5-3.5" Lift
Fox Catalog	TRUCK
Bottom Mount (p/n)	213-27-002-B
Extended Length (in)	24.52
Compressed Length (in)	14.90
Bottom Mount	ES3
Top Mount	BP4
Travel (in)	9.62
Prop 65 Y/N	Y
Body Diameter (in)	2
Type	Smooth Body
Reservoir Type	Remote
Body Material	Aluminum
California Proposition 65	! WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
GTIN	00714686858991
UPC/Barcode	714686858991
Package Dimensions	41.1250 x 5.8750 x 2.7500 IN
Package Weight	7.4000 lb gross
Warranty	Limited
