FOX 983-02-148 2.0 Factory Race Series, ATS Steering Stabilizer, Wrangler JL, Gladiator JT
FOX 983-02-148 2.0 Factory Race Series, ATS Steering Stabilizer, Wrangler JL, Gladiator JT
- Adjustable Through Shaft Stabilizer
- Black Anodized CNC Machined Aluminum Components
- External Reservoir With Compression Adjuster
- Shaft - 5/8" hard chrome plated heat-treated alloy steel
- Eliminates fluid displacement, delivering neutral and consistent damping of unwanted steering feedback
Fits Wrangler JL & Gladiator JT

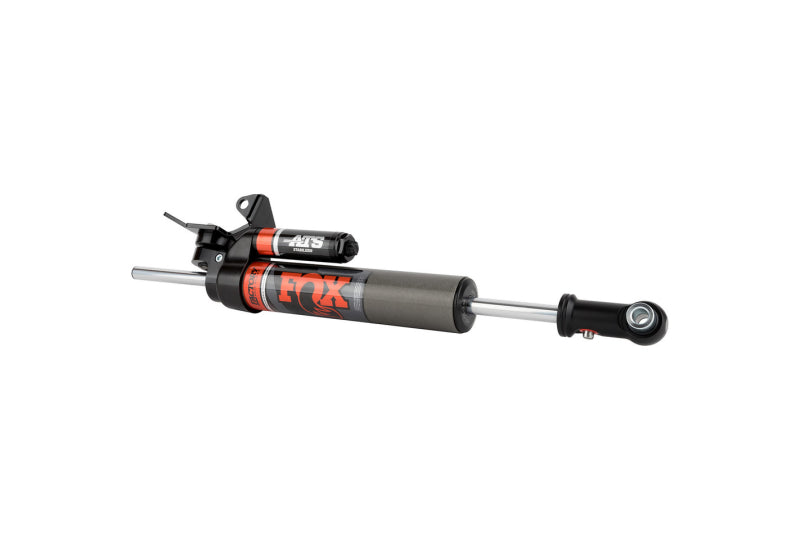

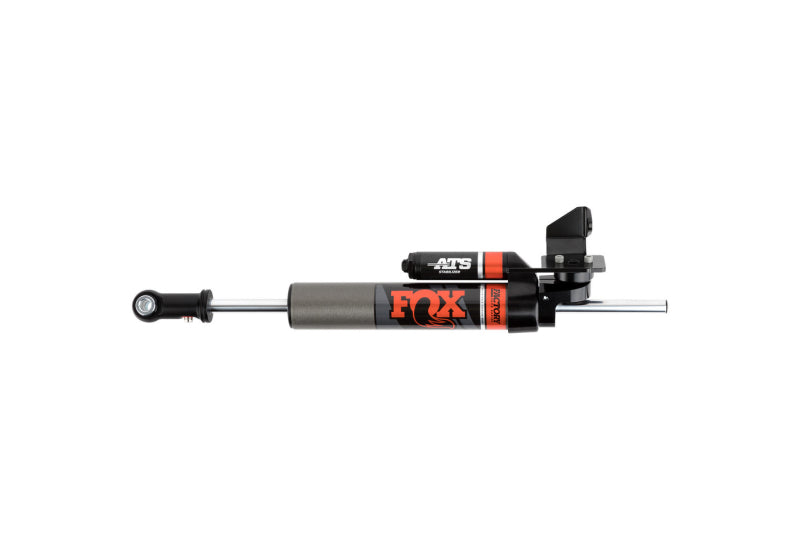

The FOX Performance Series Adjustable Through Shaft (ATS) steering stabilizer offers unrivaled steering control and a striking high tech appearance.

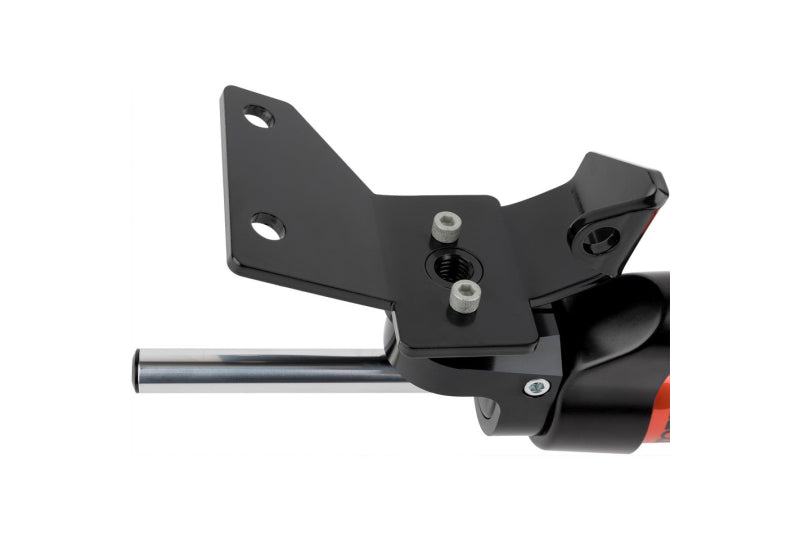

The technologically advanced design cancels unwanted steering forces in both directions, taking the place of two conventional opposing stabilizers. It will also respond to your input with 24 clicks of external adjustment to fine tune the feel. The integrated reservoir allows for additional fluid capacity and improves cooling during extreme use. Also included is FOX's relocating hardware that moves the steering stabilizer up and out of the way utilizing a new track bar relocation bolt and 1-3/8" tie-rod mounting clamp. The ATS represents a revolutionary breakthrough in stabilizer design.
Specifications
Body
2.0" Metal impacted 6061-T6 aluminum will resist rust over time
Body Plating
Clear-anodized for a durable finish
External Reservoir
External reservoir design separates shock oil from the high-pressure nitrogen
Components
Black-anodized, CNC-machined 6061-T6 billet aluminum
Shaft
5/8" hard chrome plated heat-treated alloy steel
Piston
Race-developed high-flow piston design
Seals
Redundant sealing pack system main seal, wiper seal, scraper seal
Oil
JM92 Advanced Suspension Fluid for improved performance at variable temperatures
Bushings
Quiet nitrile rubber allows for increased suspension articulation
Mounting
Direct replacement for stock and aftermarket suspension systems
Product Specifications
| Manufacturer Part Number | 983-02-148 |
|---|---|
| Label Name | 18-ON Jeep JL ATS Stabilizer, 8.1" Trav, 23.2" Ext, Through-Shaft, Axle Mount |
| Fox Catalog | TRUCK |
| Extended Length (in) | 23.19 |
| Compressed Length (in) | 15.07 |
| Series | Factory Race |
| Top Mount | Axle Mount |
| Bottom Mount | Eyelet |
| Travel (in) | 8.12 |
| Prop 65 Y/N | Y |
| Body Diameter (in) | 2 |
| Body Material | Aluminum |
| Reservoir Type | Piggyback |
| Type | Stabilizer |
| Tie Rod Clamp | Axle Mount |
| California Proposition 65 | ! WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| GTIN | 00788000424025 |
| UPC/Barcode | 788000424025 |
| Package Dimensions | 28.2500 x 5.0000 x 2.7500 IN |
| Package Weight | 6.6000 lb gross |
| Warranty | 12 Months |
