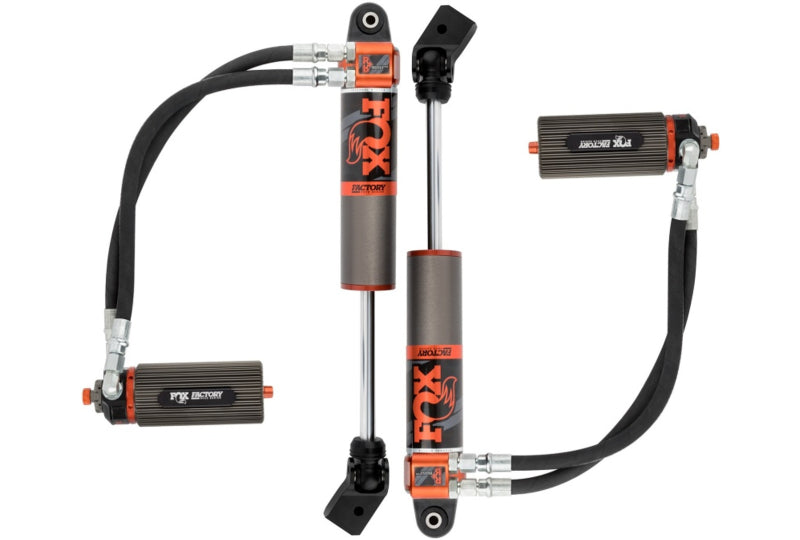

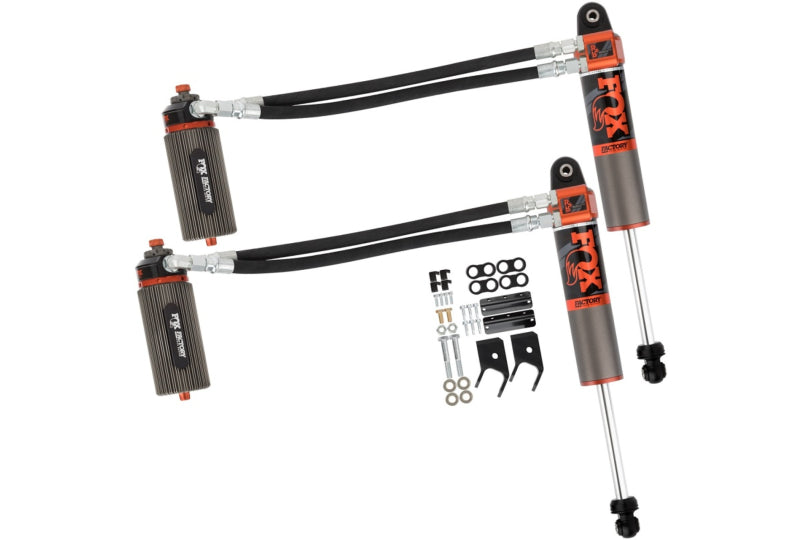

FOX 883-26-077 Front 3.0 Factory Race Series Internal Bypass Reservoir Shock for 18-22 Jeep Wrangler JL with 3.5-4.5in Lift

The Factory Race Series 3.0 Internal Bypass shock delivers race-dominating, position-sensitive damping technology and performance in a hassle-free bolt-on kit. Patented, position-sensitive internal bypass technology contains regulated ports that allow fluid to bypass the piston as it moves through the initial travel, and then forces fluid through the piston at the extreme ranges of compression and rebound. This allows for a plush, predictable ride over normal off-road driving conditions with the ability to ramp up damping force to counteract harsh bottom-outs or top-outs that could buck you off the trail. These hard-anodized, aluminum-bodied shocks are engineered with precision-machined aluminum components and race-bred internal valving. They are designed to bolt onto your aftermarket suspension lift kit using OEM shock pivots. Featuring a NEW heavy-duty piggyback bridge designed specifically for Jeep featuring hard-anodized, CNC-machined aluminum remote reservoir with external fins that act as a heat sink for increased heat dissipation. The Factory Race Series 3.0 Internal Bypass shocks utilize the same components we use in our race-winning Trophy Truck shocks, including stainless steel shock shafts, PTFE-lined spherical bearings, proprietary racing oil and high-temp Viton® seals. Specifications Body 3.0" impact extruded and CNC machined 6061-T6 hard-anodized aluminum body resists corrosion and weighs less than steel Body Plating This unit comes with a clear-coated, zinc-plated finish for outstanding durability on the trails. It also comes with JM92 advanced suspension fluid for outstanding variable temperature performance. Aluminum finned remote reservoir with piggyback bridge dissipates heat fast 3.0" Smooth Bore 6061-T6 billet aluminum Components Black-anodized, CNC-machined 6061-T6 billet aluminum Shaft 7/8" hard chrome plated heat-treated alloy steel Piston Race-developed high-flow piston design

Product Specifications

Manufacturer Part Number	883-26-077
Bottom Mount (p/n)	014-11-003-A
Top Mount (p/n)	014-11-026
Series	Factory Race
Extended Length (in)	27.70
Compressed Length (in)	16.98
Fox Catalog	TRUCK
Adjuster Type	DSC - Dual Speed Compression
Bottom Mount	EB2
Top Mount	EB2
Travel (in)	10.72
Label Name	Kit: 18-ON Jeep JL, Front, Internal Bypass, 3.0 Series, R/R, 3.5-4.5" Lift, DSC, Requires Front Driveshaft
Prop 65 Y/N	Y
Body Diameter (in)	3
Reservoir Type	Remote
Type	Smooth Body Internal Bypass
Body Material	Aluminum
California Proposition 65	! WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
GTIN	00711745590472
UPC/Barcode	711745590472
Package Dimensions	39.0000 x 20.0000 x 12.0000 IN
Package Weight	45.0000 lb gross
Warranty	12 Months
