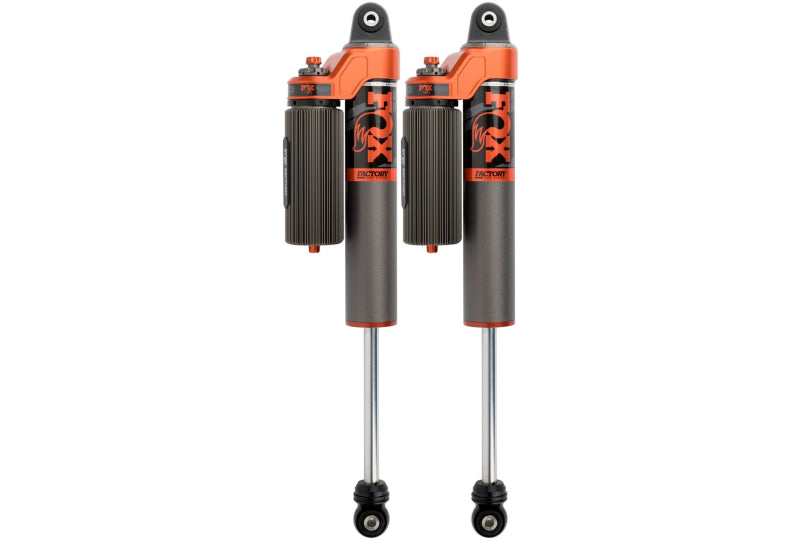

FOX 883-26-083 Rear 3.0 Factory Race Series Internal Bypass Piggy Back Shocks, Rear, for 20-22 Jeep Gladiator JT with 3.5"-4.5"in Lift
FOX 883-26-083 Rear 3.0 Factory Race Series Internal Bypass Piggy Back Shocks, Rear, for 20-22 Jeep Gladiator JT with 3.5"-4.5"in Lift
Regular price
$3,149.95
Sale price
$3,149.95
Regular price
Ship Cost:
—
*Contiguous US Shipping
Incredible Fine-Tuning Capability, Complete Two Speed Adjustability
- Premium-Grade, CNC-Machined 6061-T6 Billet Aluminum Construction
- Black Anodized CNC Machined Aluminum Components
- 7/8" hard chrome plated heat-treated alloy steel shaft
- PTFE-lined, heat-treated, alloy steel spherical keep the shock movement quiet and smooth
- Application-specific valving to maximize performance Seals Redundant sealing pack system main seal, wiper seal, and scraper seal resist leaks in harsh conditions
- Performance Tuned For Vehicle Specific Application
Fits: Gladiator JT, with 3.5"-4.5" Lift
The Factory Race Series 3.0 Internal Bypass shock delivers race-dominating, position-sensitive damping technology and performance in a hassle-free bolt-on kit. Patented, position-sensitive internal bypass technology contains regulated ports that allow fluid to bypass the piston as it moves through the initial travel, and then forces fluid through the piston at the extreme ranges of compression and rebound. This allows for a plush, predictable ride over normal off-road driving conditions with the ability to ramp up damping force to counteract harsh bottom-outs or top-outs that could buck you off the trail. These hard-anodized, aluminum-bodied shocks are engineered with precision-machined aluminum components and race-bred internal valving. They are designed to bolt onto your aftermarket suspension lift kit using OEM shock pivots. Featuring a NEW heavy-duty piggyback bridge designed specifically for Jeep featuring hard-anodized, CNC-machined aluminum remote reservoir with external fins that act as a heat sink for increased heat dissipation. The Factory Race Series 3.0 Internal Bypass shocks utilize the same components we use in our race-winning Trophy Truck shocks, including stainless steel shock shafts, PTFE-lined spherical bearings, proprietary racing oil and high-temp Viton® seals.
Specifications
Body
3.0" impact extruded and CNC machined 6061-T6 hard-anodized aluminum body resists corrosion and weighs less than steel
Body Plating
This unit comes with a clear-coated, zinc-plated finish for outstanding durability on the trails. It also comes with JM92 advanced suspension fluid for outstanding variable temperature performance.
Aluminum finned remote reservoir with piggyback bridge dissipates heat fast
3.0" Smooth Bore 6061-T6 billet aluminum
Components
Black-anodized, CNC-machined 6061-T6 billet aluminum
Shaft
7/8" hard chrome plated heat-treated alloy steel
Piston
Race-developed high-flow piston design
Product Specifications
| Manufacturer Part Number | 883-26-083 |
|---|---|
| Series | Factory Race |
| Extended Length (in) | 28.34 |
| Compressed Length (in) | 18.93 |
| Fox Catalog | TRUCK |
| Adjuster Type | DSC - Dual Speed Compression |
| Top Mount (p/n) | 213-28-000-B |
| Bottom Mount (p/n) | 213-28-000-B |
| Bottom Mount | ES6 |
| Top Mount | ES6 |
| Travel (in) | 9.41 |
| Label Name | Kit: 20-ON Jeep JT Gladiator, Rear, Internal Bypass, 3.0 Series, P/B, 3.5-4.5" Lift, DSC |
| Prop 65 Y/N | Y |
| Body Diameter (in) | 3 |
| Reservoir Type | Piggyback |
| Body Material | Aluminum |
| Type | Smooth Body Internal Bypass |
| California Proposition 65 | ! WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| GTIN | 00711745590526 |
| UPC/Barcode | 711745590526 |
| Package Dimensions | 39.0000 x 20.0000 x 12.0000 IN |
| Package Weight | 45.0000 lb gross |
| Warranty | 12 Months |
