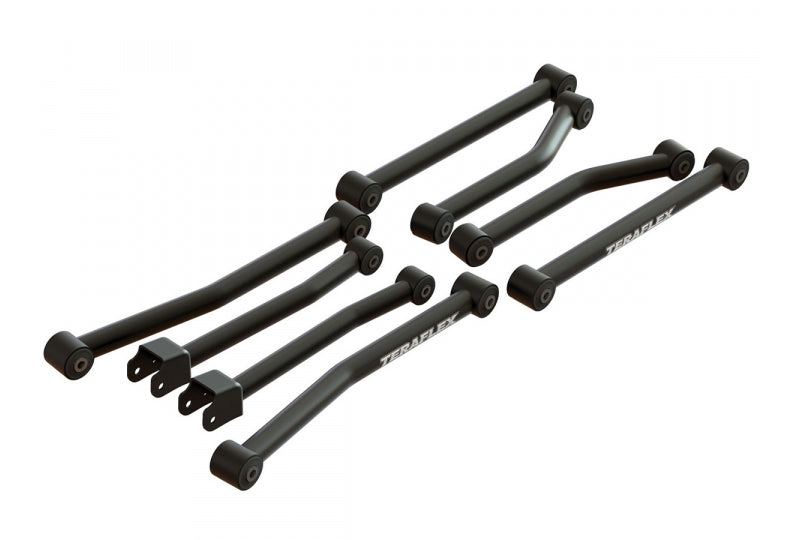

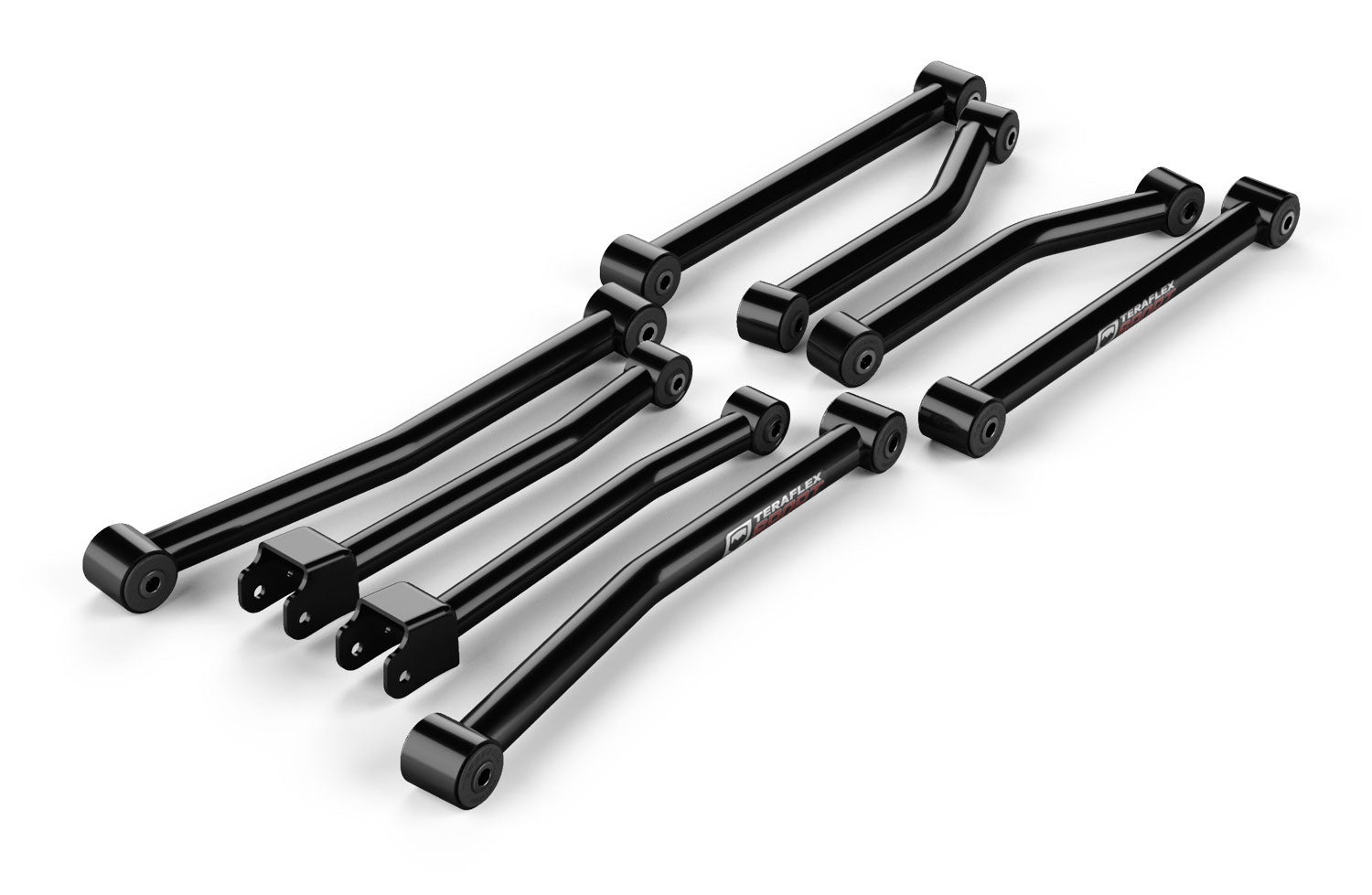

07-18 Wrangler JK Sport Control Arm Kit 8-Arm 2.5-3 Inch Lift TeraFlex

TeraFlex JK: Sport Control Arms provide maintenance-free and dependable performance on JK Wrangler/Unlimited models with 2.5-3 Inch Lifts. Bolts to the factory control arm mounting brackets.
High-quality, dependable, maintenance-free, factory-style bushings provide excellent NVH damping and ride quality.
Can be added to any existing suspension lift.
Sport Control Arm Pairs:

• Arm Pair - Front Upper (# 1252200)
• Arm Pair - Front Lower (# 1252000)
• Arm Pair - Rear Upper (# 1252300)
• Arm Pair - Rear Lower (# 1252100

Vehicle(s):

• JK Wrangler (2-door)
• JK Wrangler Unlimited (4-door)

Specs:

• Lift Height: 2.5-3 Inch

Control Arm Specs:

• JK: Sport Control Arm Pair - Front Upper (# 1252200):
  • Tube Diameter & Wall: 42mm x 4mm
  • Factory Length: 18-3/4 Inch
  • Preset Length: 18-3/4 Inch
  • Bolt - Both: 12mm
  • Bushing - Axle: OEM
  • Bushing - Frame: 611014
• JK: Sport Control Arm Pair - Front Lower (# 1252000):
  • Tube Diameter & Wall: 42mm x 4mm
  • Factory Length: 22-5/8 Inch
  • Preset Length: 22-13/16 Inch
  • Bolt - Both: 14mm
  • Bushing - Both: 611011
• JK: Sport Control Arm Pair - Rear Upper (# 1252300):
  • Tube Diameter & Wall: 42mm x 4mm
  • Factory Length: 17-7/16 Inch
  • Preset Length: 17-11/16 Inch
  • Bolt - Both: 14mm
  • Bushing - Both: 611012
• JK: Sport Control Arm Pair - Rear Lower (# 1252100):
  • Tube Diameter & Wall: 42mm x 4mm
  • Factory Length: 19-3/4 Inch
  • Preset Length: 19-15/16 Inch
  • Bolt - Both: 14mm
  • Bushing - Both: 611011
