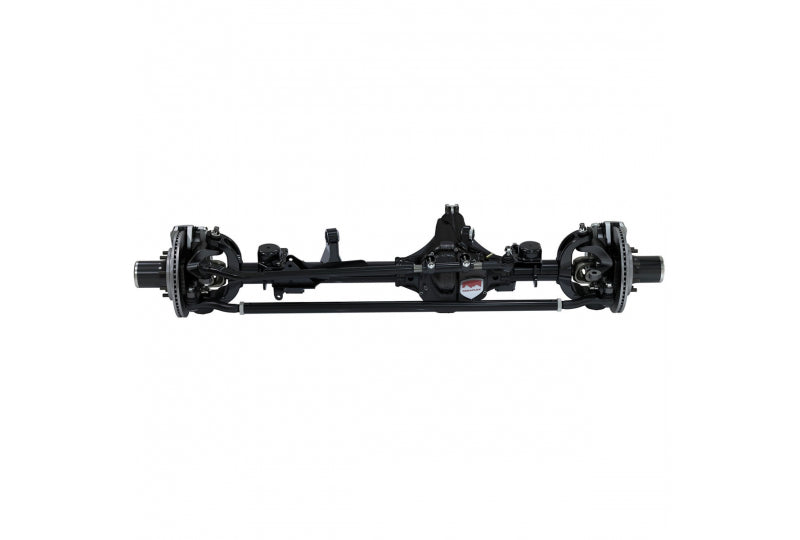

Teraflex Tera 60 Front Axle Assembly
Teraflex Tera 60 Front Axle Assembly

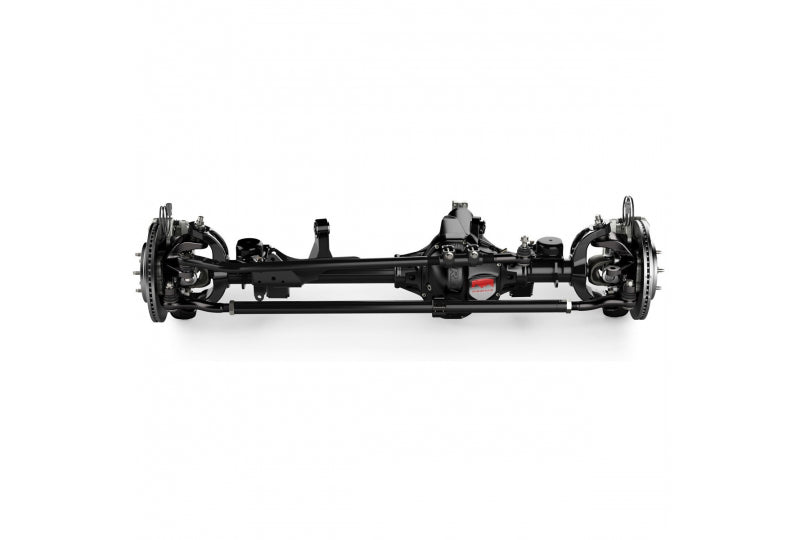

Teraflex Tera60 Unit Bearing Axle
Teraflex Tera 60 Front Axle Assembly

Teraflex Tera 60 Front Axle Assembly

Teraflex Tera 60 Front Axle Assembly

MPN: 3626430

In Stock

$9,399.99
$9,399.99
Ship Cost: —
*Contiguous US Shipping
  • Available With ARB Air Locker
  • Available In 4.30, 4.88, 5.13, Or 5.38 Gear Ratios
  • Available With Unit Bearings Or Full Float Designs
  • Available In 5 x 5, Or 8 x 6.5 Bolt Patterns
  • Forged inner Knuckles

Fits 2007-2018 Jeep Wrangler JK, JK Unlimited

Shipping Policy.

Every part has its limits, and even the robust Rubicon Dana 44 axles can break or bend. The heavy-duty TeraFlex JK Front Tera60 Axle Housing is the ultimate upgrade for the JK Wrangler requiring maximum up travel and suspension compression. With the driver side upper control arm mount integrated into the housing assembly, the Tera60 gains an additional 2" of up travel compared to other Dana 60 Axle housings. The Tera 60 is equipped with the same features found in all Teraflex axles, including a heavy duty axle housing, heavy duty tubes, forged inner knuckles, high flow oil passages and heavy duty bracketry.

Features:

  • LIFT HEIGHT: 0-6"
  • WIDTH: 67" WMS-WMS (stock) OR 70" WMS-WMS (Wide)
  • AXLE TUBE: 3.25" x 0.375"
  • WHEEL BOLT PATTERN: 5 x 5" (stock) Or 8 x 6.5 (Full Float)
  • ARB Super 60 air locker
  • Spicer ring & pinion
  • Spicer bearings & install kits
  • TeraFlex HD ball joints
  • 1350 series pinion yoke
  • 35-spline inner & outer axle shafts
  • Big Brake Kit w/ 13.3" rotors
  • JK Premium HD Complete Steering with Flipped Drag Link Kit
  • Sealed unit bearing assembly for long-term maintenance-free dependability
  • 3.25" O.D. x 0.375" wall DOM axle tube for superior strength vs. weight
  • Front Tera60 specific high-pinion axle housing design
  • Pre-installed axle seals
  • HD forged inner knuckles w/ greater upper & lower section strength
  • Ductile cast iron housing w/ increased rib gussets
  • HD ductile iron differential cover
  • Asymmetric housing design, for extra-long tube side strength
  • Smooth radius bottom design to glide over rocks & obstacles
  • Integrated lower flexarm skid plates
  • Premium UV protected triple-stage powder coat for superior corrosion resistance
  • 1/4"-thick CNC laser cut axle brackets for extreme strength
  • Integrated factory location upper control arm mount
  • Pre-installed upper control arm bushings
  • Reinforced front track bar mount (ties into spring pad) for greater strength
  • Proper pinion angle for lifted JK applications
  • Pre-tapped hole on spring perch for bump stop extensions
  • Pre-drilled holes for limit straps & lower spring retainers
  • Retains all JK ESP, ABS, & speedometer sensor capability
  • 100% engineered, designed, & built in the USA
  • 100% new components
  • 1-Year / Unlimited Mileage Warranty
