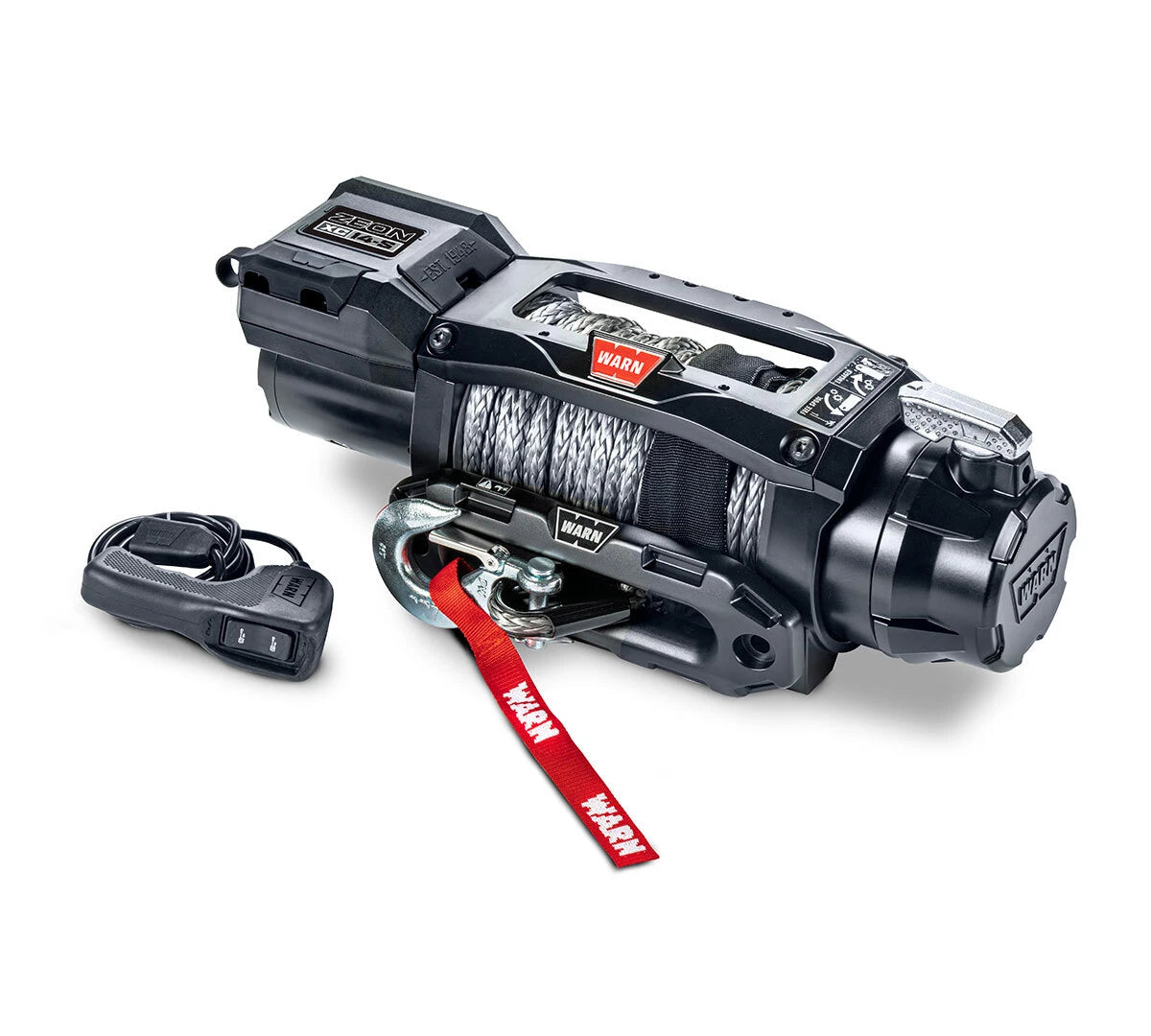

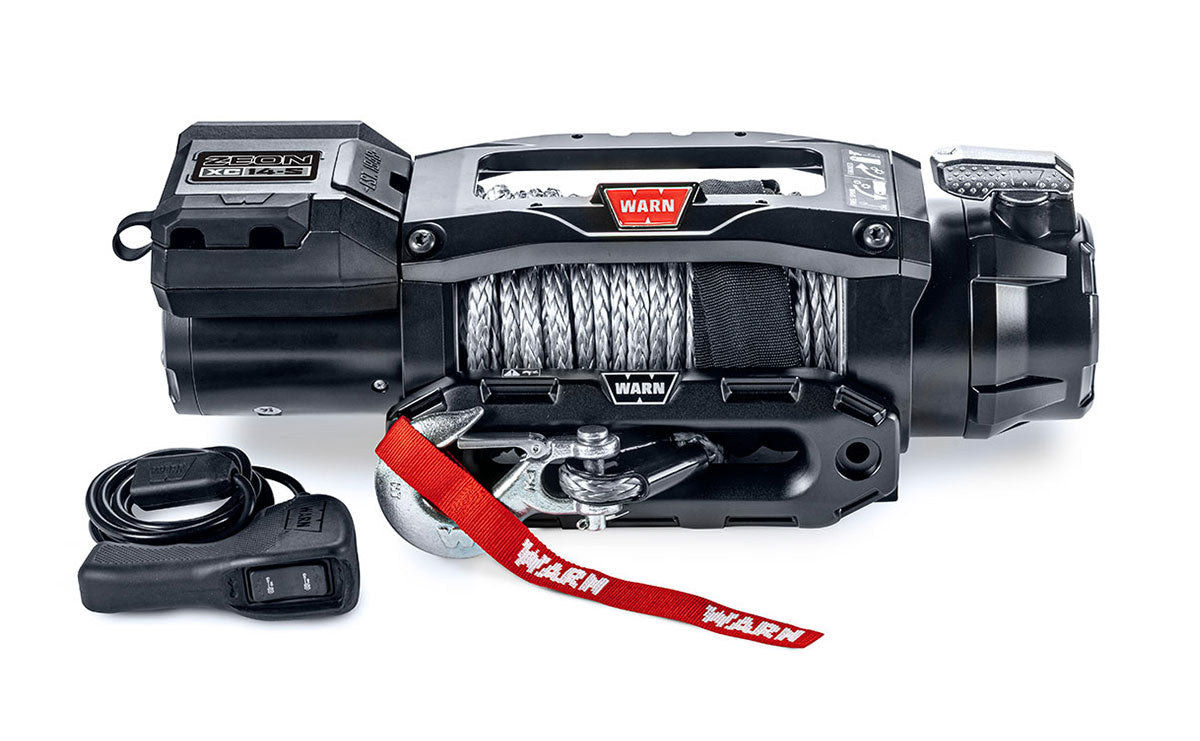

Warn 110514 Zeon XC 14s - 14,000 Pound Synthetic Rope Winch
Warn 110514 Zeon XC 14s - 14,000 Pound Synthetic Rope Winch
Unmatched Pulling Strength and Blazing-Fast Line Speeds!
- IP68K Submersion Rated
- IP69K High Pressure Spray Rated
- 80’ Feet of 3/8� Spydura Synthetic Rope

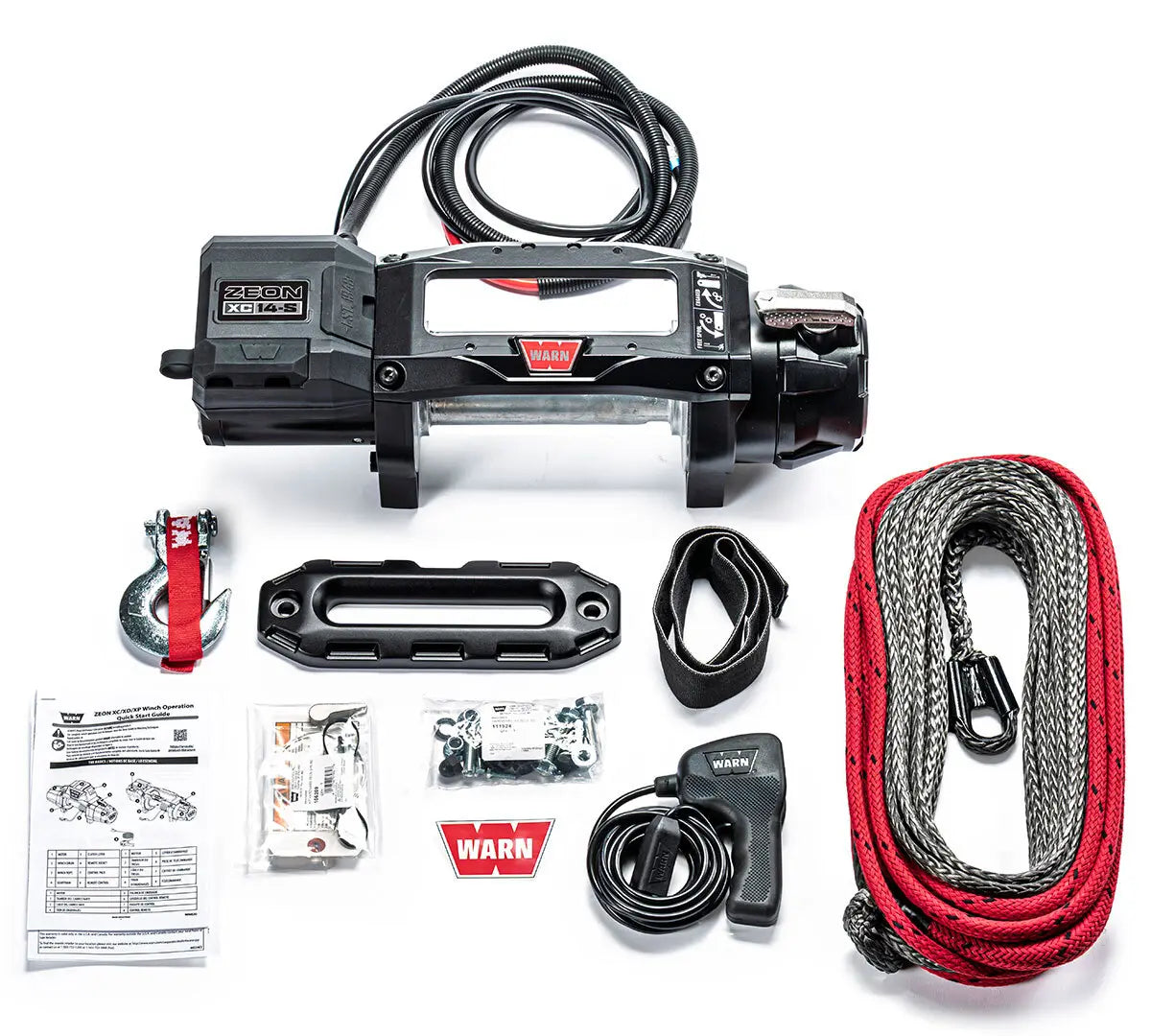

- Includes Wired Remote and Hub Wireless Receiver
- Limited Lifetime Mechanical, 7 Years Electrical Warranty
- Engineered, Tested, and Assembled in Clackamas, Oregon
The compact, low-profile ZEON XC winch delivers unmatched performance with best-in-class line speed and capacity. Engineered, tested, and assembled at our Clackamas, Oregon facility, ZEON XC is a premium, ultra-reliable recovery tool that’s backed by the industry’s leading warranty.
All the performance of the ZEON XD winches but in a more compact size for mounting in tighter spaces

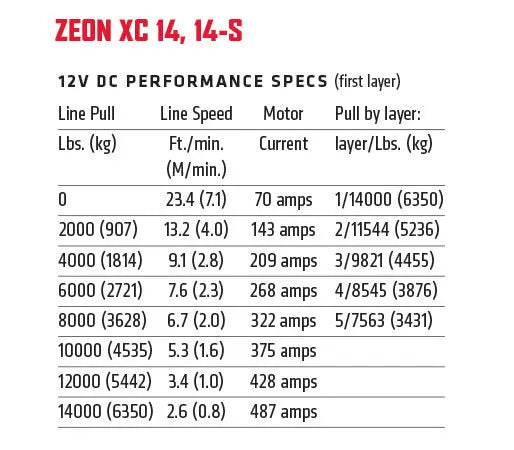

High-performance, high-efficiency motor and geartrain delivers blazing fast no-load line speeds of up to 40 ft/min—the fastest in its class
Reliable waterproof construction features o-ring rubber sealing. The entire winch is IP68 submersion and IP69K high pressure spray rated
Corrosion resistant black fasteners meet the highest OEM-grade specifications
All-new low-profile control box with WARN exclusive Albright contactor and bus bars for ultimate control, reliability and efficiency
Remote socket can be relocated up to 9� away from control pack without disassembly
Control pack can be relocated off of the winch using one of WARN’s control pack relocation kit (PN 111872: ZEON XC 31� relocation kit; PN 111991: ZEON XC 78� relocation kit)
Motor can be rotated up to 90° forward; control pack moves with motor; transmission can be clocked up to five different positions
The ZEON XC fairleads can be utilized for both feet down and feet forward installations — no separate offset fairlead is needed
Large diameter aluminum-alloy drum reduces rope wear and helps to dissipate brake heat. The patented rope anchor system is the strongest on the market, and allows for easy rope installation
Automatic load-holding cone brake offers excellent control and holding strength
Exceptionally durable corded remote with 12’ lead
Industry-leading warranty: Limited lifetime mechanical, seven year electrical—all backed by a global service network
Product Specifications
| Manufacturer Part Number | 110514 |
|---|---|
| Brake Activation | Automatic |
| Brake Type | Cone |
| Cable Material | Synthetic Rope |
| D Shackle Included | No |
| Fairlead Type | Hawse |
| Free Spooling | Yes |
| Gear Ratio | 213:1 |
| Gearing | 3-Stage Planetary |
| Hand Saver | Yes |

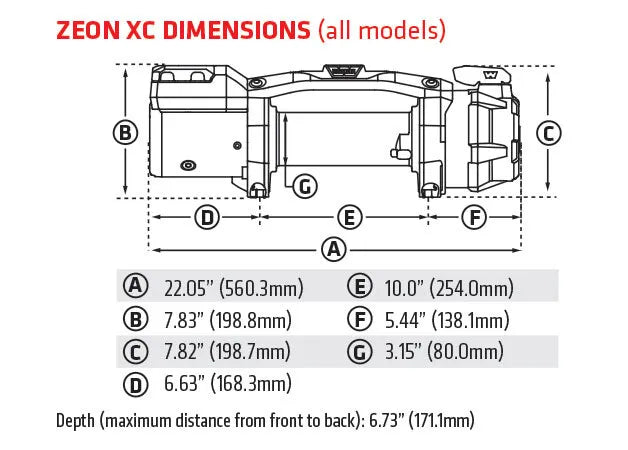

| Length | 22 |
| Maximum Height | 7.8 |
| Maximum Width | 6.7 |
| Motor Type | Series Wound |
| Mounting Hole Quantity | 4 |
| Power Out | Yes |
| Remote Included | Yes |
| Remote Type | Wire |
| Type | Electric |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
| WARNING CA Proposition 65 | Yes |
| Cable Diameter | 0.375 |
| Cable Length | 80 |
| Motor Voltage | 12 |
| Mounting Bolt Pattern Length | 4.5 |
| Mounting Bolt Pattern Width | 10 |
| Rated Line Pull | 14000 |
| Solenoid Type | Yes |
| Voltage | 12 |
| GTIN | 00012748122883 |
| Package Dimensions | 18.5000 x 27.0000 x 8.5000 IN |
| Package Weight | 78.0000 lb gross |
| Warranty | Lifetime mechanical, 7 year electrical |
